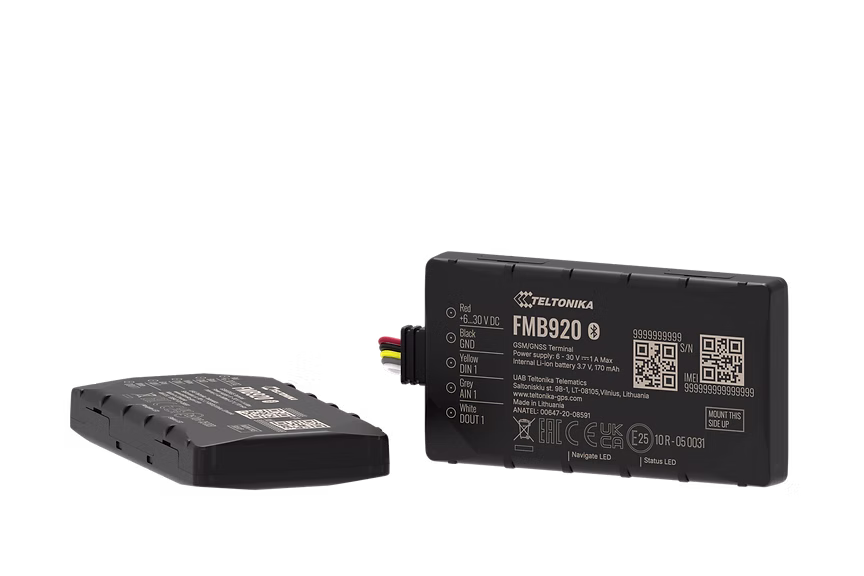

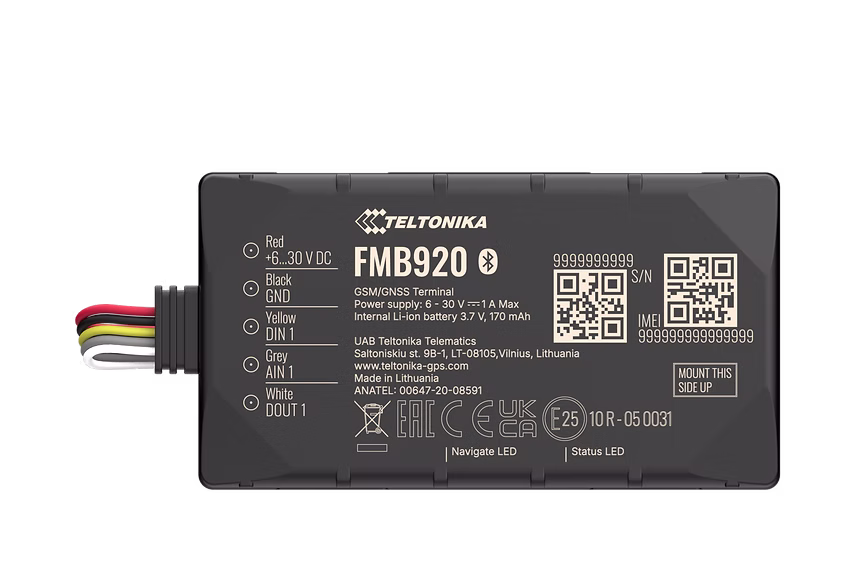

FMB920
Best-selling 2G tracker for anti-theft — compact, smart, and Bluetooth-ready
Overview
FMB920 is a light real-time tracking terminal with GNSS, GSM and Bluetooth connectivity, able to collect device coordinates and other useful data and transfer them via the GSM network to a server. Bluetooth peripherals can greatly expand the device's functionality wirelessly. It combines Auto Geofencing with Towing Detection for advanced anti-theft protection, and its ultra-small, IP54-certified case makes it easy to install and hard to find.
Key Features
- Bluetooth transceiver (V3.0) for external peripherals
- IP54 certified case — protected against dust and water splash
- microSD card support up to 32 GB (up to 275 million records)
- Fully controllable digital output via SMS and configurator
- Ultra small case, easy to mount in limited access areas
- Fast first GPS fix and real-time tracking
- Sends data via GPRS (TCP/IP and UDP/IP protocols)
- Smart GPRS connection algorithm for traffic saving
- Roaming support via preferred GSM providers list
- I/O event detection and alerts via GPRS or SMS
- Auto Geofencing and Towing Detection for anti-theft
- Deep Sleep mode with under 2 mA power consumption
- Firmware and configuration updates over GPRS
- Smart data acquisition by time, distance, angle or ignition/I-O events
- High-gain internal GNSS and GSM antennas
- Crash detection using the built-in accelerometer
- Configuration via Bluetooth or Secured SMS commands
Applications
- Personal cars
- Fleet management
- Car rental companies
- Taxi services
- Public transport
- Logistics companies
- Motorcycles & ATVs
Specifications
GNSS
| Spec | Value |
|---|---|
| Tracking channels | 33 / 99 acquisition channels |
| Sensitivity | -165 dBm |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Accuracy | < 3 m |
| Protocol | NMEA-183 |
| Systems | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS |
GSM / Connectivity
| Spec | Value |
|---|---|
| Bands | Quad-band 900/1800 MHz; 850/1900 MHz |
| GPRS | Multi-Slot Class 12 (up to 240 kbps) |
| GPRS mobile station | Class B |
| SMS | Text / data |
Bluetooth
| Spec | Value |
|---|---|
| Version | V3.0 |
| Voice calls | Supported over Bluetooth headset |
| Configuration | Supported via Bluetooth |
| External sensors | Supported (e.g. temperature, humidity) |
Interface & Hardware
| Spec | Value |
|---|---|
| Digital input | 1 |
| Analog input | 1 |
| Digital output | 1 (open-collector — relays, LEDs, buzzers) |
| Accelerometer | Built-in |
| Storage | microSD card, up to 32 GB (~275 million records) |
| Status LEDs | 2 |
| Antennas | Internal high-gain GNSS and GSM |
Power
| Spec | Value |
|---|---|
| Supply voltage | +10…+30 V DC, overvoltage protected |
| Deep Sleep consumption | < 2 mA |
| Backup battery | Integrated, for power-loss & anti-theft detection |
Physical
| Spec | Value |
|---|---|
| Dimensions | 79 × 43 × 12 mm (L×W×H) |
| Ingress protection | IP54 certified case |
| Cable | Color-coded, non-detachable |
| Operating temperature | -40°C to +85°C |
