Bluetooth Beacon

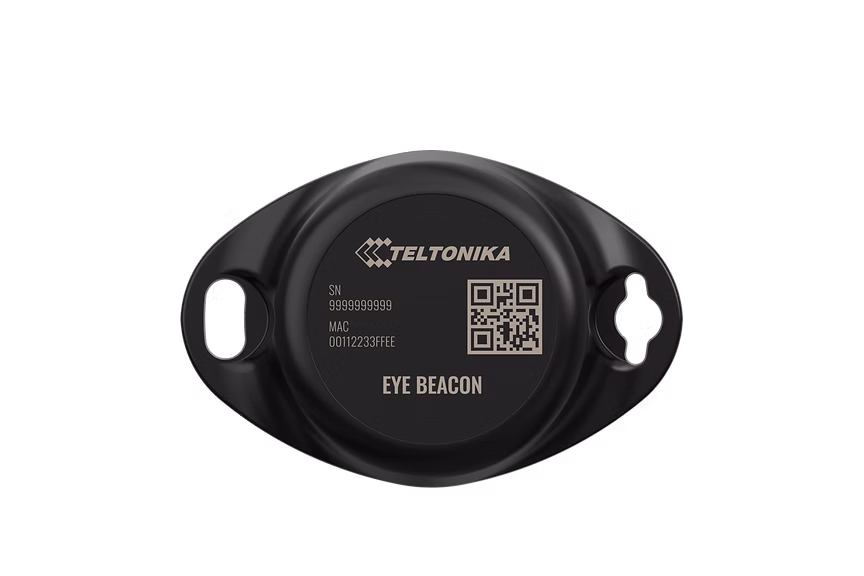

Eye Beacon
Compact Bluetooth Low Energy ID beacon for asset identification and tracking
Overview
EYE Beacon is a compact Bluetooth Low Energy ID beacon designed for identifying and tracking assets in professional environments. With up to 80 m range and a battery life of up to 10 years, it supports iBeacon and Eddystone protocols and reports magnet detection and battery level status through the Teltonika firmware platform — a simpler, sensor-free alternative to the EYE Sensor for pure identification and proximity use cases.
Key Features
- Bluetooth Low Energy ID beacon supporting iBeacon and Eddystone protocols
- Up to 80 m Bluetooth range
- Configurable transmission power up to 8 dBm
- Magnet detection for open/close event reporting
- Battery level reporting via the Teltonika firmware platform
- Battery life of up to 10 years depending on transmission interval
- IP67 rated for outdoor and harsh environments
- Dual mounting hole design for flexible installation
- Configuration via the Teltonika mobile app
Applications
- Asset identification & tracking
- Logistics & warehouse inventory
- Agriculture equipment tracking
- Construction tools & equipment tracking
Specifications
Bluetooth
| Spec | Value |
|---|---|
| Specification | 4.2 |
| Range | Up to 80 m |
| Transmission power | Up to 8 dBm (configurable) |
| Protocols | iBeacon, Eddystone |
Sensors
| Spec | Value |
|---|---|
| Magnet detection | Open/close event detection |
| Battery level reporting | Supported via Teltonika firmware platform |
Power
| Spec | Value |
|---|---|
| Battery | CR2450 Li/MnO2, 600 mAh (non-replaceable) |
| Battery life | Up to 10 years (depending on transmission interval) |
Physical
| Spec | Value |
|---|---|
| Dimensions | 56.6 × 38 × 13 mm |
| Weight | 18 g |
| Color | Black |
| Material | Plastic |
| Ingress protection | IP67 |
| Operating temperature | -20°C to +60°C |
