Bluetooth Sensor
Eye Sensor
Bluetooth Low Energy beacon with integrated sensors for passenger and asset identification
Overview

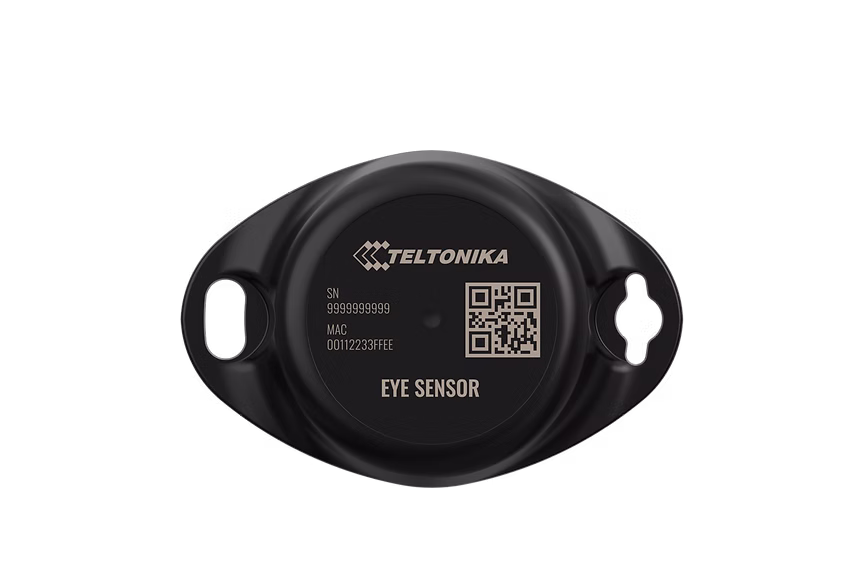

EYE Sensor is a Bluetooth Low Energy ID beacon with integrated temperature, humidity, movement and magnet sensors, built for asset identification, tracking, and condition monitoring. With up to 80 m Bluetooth range and a battery life of several years, it supports iBeacon and Eddystone protocols and pairs with NexaBus to register passenger boarding and alighting events, monitor cargo conditions, or detect trailer door open/close events.
Key Features
- Bluetooth Low Energy beacon supporting iBeacon and Eddystone protocols
- Up to 80 m Bluetooth range
- Built-in temperature and humidity sensors
- Accelerometer for movement and orientation detection
- Magnet detection for wireless open/close events (e.g. trailer doors)
- Multi-year battery life (up to 7 years depending on transmission interval)
- IP67 rated for outdoor and harsh environments
- LED indication
- Multiple mounting options: screw holes, leash attachment, strip or tape
- Configuration via the Teltonika mobile app
- Registers passenger boarding/alighting events via the NexaRide app
Applications
- Passenger identification & attendance
- Cold chain & cargo monitoring
- Trailer & container tracking
- Agriculture equipment tracking
- Construction tools & inventory tracking
Specifications
Bluetooth
| Spec | Value |
|---|---|
| Specification | 4.2 / 5.2 |
| Range | Up to 80 m |
| Transmission power | Up to 8 dBm |
| Protocols | iBeacon, Eddystone |
Sensors
| Spec | Value |
|---|---|
| Temperature | -20°C to +60°C |
| Humidity | Supported |
| Movement | Built-in accelerometer |
| Magnet detection | Open/close event detection |
Power
| Spec | Value |
|---|---|
| Battery | CR2450 Li/MnO2, 600 mAh |
| Battery life | Up to 7 years (depending on transmission interval and accelerometer use) |
Physical
| Spec | Value |
|---|---|
| Dimensions | 56.6 × 38 × 13 mm |
| Weight | 18 g |
| Color | Black |
| Material | Plastic |
| Ingress protection | IP67 |
| Operating temperature | -20°C to +60°C |
