Overview

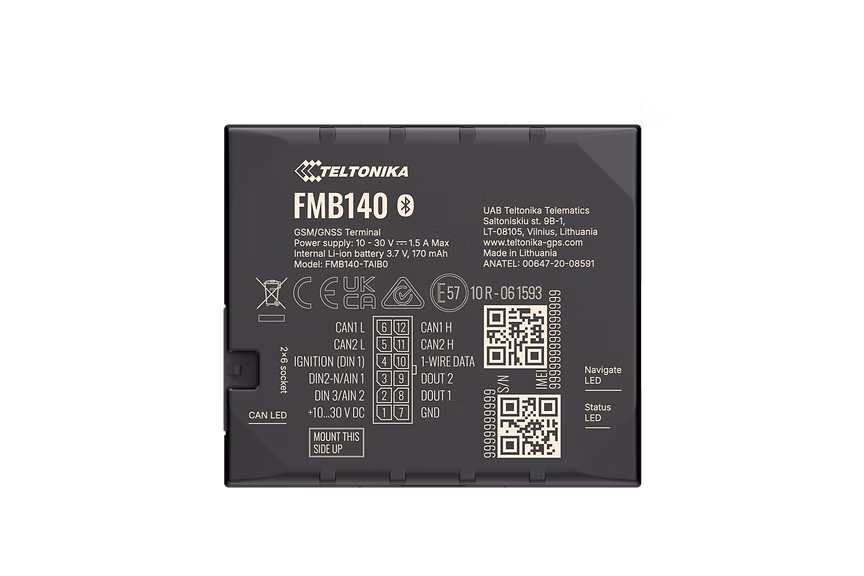

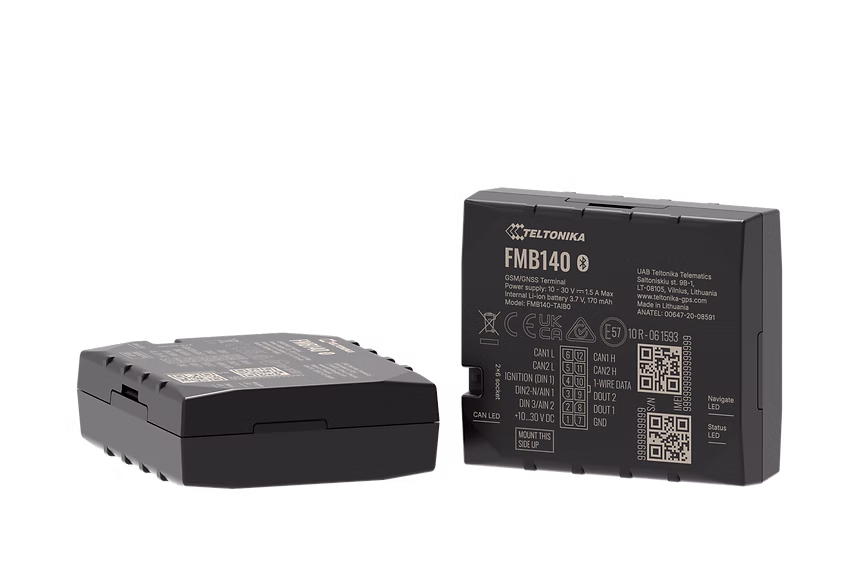

FMB140 is an advanced GSM/GNSS/Bluetooth tracker with an integrated CAN data processor — a GPS tracker and CAN adapter in one compact device. It reads CAN bus data from a wide range of vehicles, including light and electric vehicles, trucks, buses and special machinery, giving access to real fuel consumption and level, total mileage, engine temperature and more. Two software options — LV-CAN200 and ALL-CAN300 — let it fit different vehicle types and business needs.

Key Features

Reads CAN data from light vehicles, buses, coaches and trucks
Optional CAN data reading from agriculture and special transport
Real fuel consumption and level, total mileage, engine temperature and more from the CAN bus
Bluetooth 4.0 + LE for external devices and Low Energy sensors
Two CAN interfaces plus 1-Wire for temperature sensors and RFID/iButton tags
Auto Geofencing and Towing Detection for anti-theft
Smart Crash detection with immediate alert on impact
Multiple sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Green driving, over-speeding and excessive idling detection
Immobilizer and DOUT control via call, SMS or GPRS
Jamming detection
GNSS fuel counter alongside CAN-based fuel data
OTA firmware & configuration updates (FOTA, USB/Bluetooth configurator, FMBT app)
128 MB internal flash memory
Micro-SIM + eSIM support

Applications

Light vehicles
Heavy duty transport
Trailer tracking
Refrigerated transport
International logistics
Car sharing

Specifications

GNSS

Spec	Value
Receiver	33 channel
Tracking sensitivity	-165 dBm
Position accuracy	< 2.5 CEP
Velocity accuracy	< 0.1 m/s (within ±15% error)
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Systems	GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS

GSM / Connectivity

Spec	Value
Bands	Quad-band 850/900/1800/1900 MHz
Data transfer	GPRS Multi-Slot Class 12 (up to 240 kbps)
GPRS mobile station	Class B
Data support	SMS (text/data)
SIM	Micro-SIM + eSIM

Bluetooth

Spec	Value
Specification	4.0 + LE
Supported peripherals	Temperature & humidity sensor, headset, OBDII dongle, barcode scanner, universal BLE sensors

Interface & Hardware

Spec	Value
Digital inputs	3
Negative input	1 (Digital Input 2)
Impulse inputs	2 (Digital Input 1, Digital Input 2)
Digital outputs	2
Analog inputs	2
CAN interfaces	2
1-Wire	1
USB	2.0 Micro-USB
Status LEDs	3
Storage	128 MB internal flash memory
Antennas	Internal high-gain GNSS and GSM
