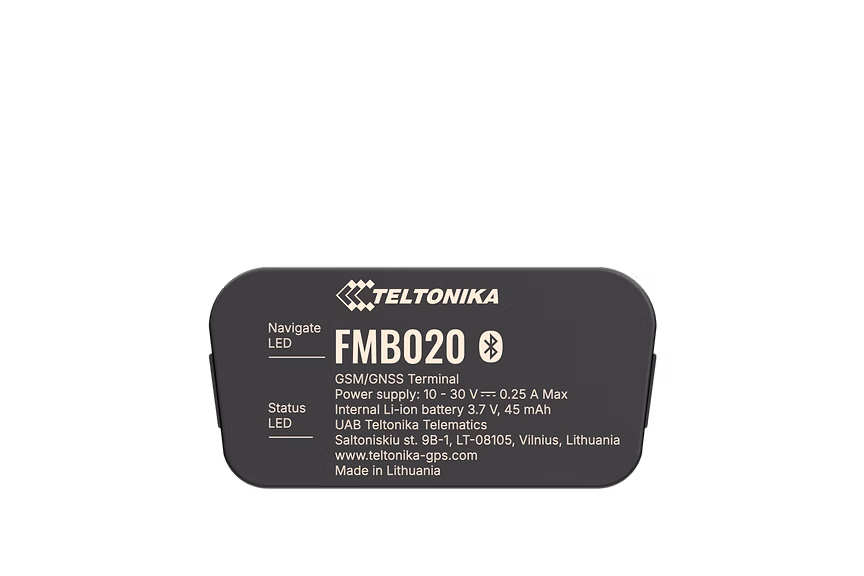

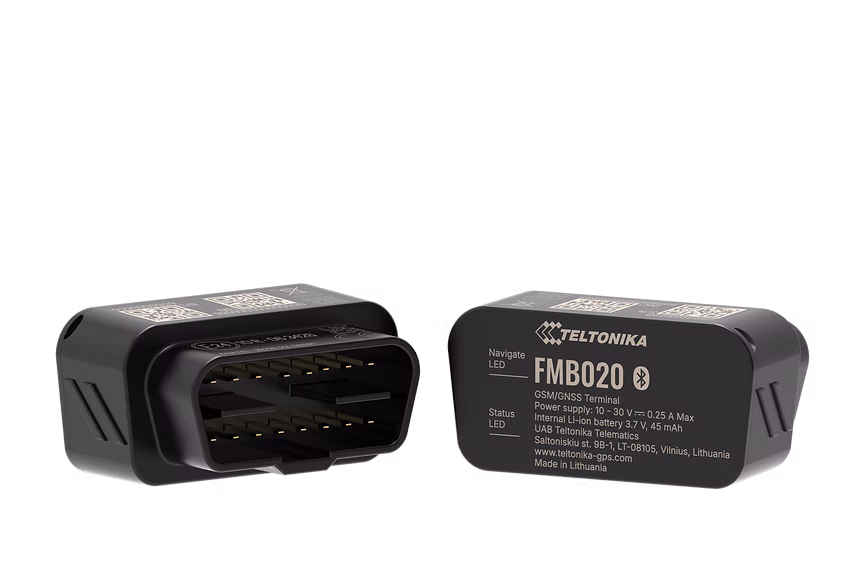

FMB020
Ultra-small OBDII plug-and-track tracker for fast, effortless installation
Overview
FMB020 is an ultra-small OBDII plug-and-track device with GNSS, GSM and Bluetooth connectivity. It plugs directly into the vehicle's OBDII port for extremely fast installation, giving real-time location and speed data with no wiring required. It suits fleet management of light commercial vehicles, driver log-books, insurance telematics and connected car applications.
Key Features
- Ultra-small OBDII plug-and-track design — no wiring, ready in seconds
- Bluetooth 4.0 + LE for external sensors, beacons and hands-free headsets
- Firmware and configuration updates via Bluetooth
- Crash detection based on accelerometer data
- Towing and unplug detection
- Auto and manual geofencing with trip detection
- Green driving, over-speeding and excessive idling detection
- GSM jamming detection
- GNSS fuel counter
- Multiple sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
- OTA firmware & configuration updates (FOTA, USB/Bluetooth configurator, FMBT app)
- 128 MB internal flash memory
- Nano-SIM
Applications
- Fleet management
- Driver log-book
- Insurance telematics (UBI)
- Car rental & leasing
- Connected car
Specifications
GNSS
| Spec | Value |
|---|---|
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBm |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Systems | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS |
GSM / Connectivity
| Spec | Value |
|---|---|
| Bands | Quad-band 850/900/1800/1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| Data support | SMS (text/data) |
| SIM | Nano-SIM |
Bluetooth
| Spec | Value |
|---|---|
| Specification | 4.0 + LE |
| Supported peripherals | Temperature & humidity sensor, headset, barcode scanner, universal BLE sensors |
Interface & Hardware
| Spec | Value |
|---|---|
| Connection | OBDII socket |
| Antennas | Internal high-gain GNSS and GSM |
| USB | 2.0 Micro-USB |
| Status LEDs | 2 |
| Storage | 128 MB internal flash memory |
Power
| Spec | Value |
|---|---|
| Supply voltage | 12–30 V DC, overvoltage protected |
| Backup battery | 45 mAh, 3.7 V |
| Power consumption | < 5 mA (Ultra Deep Sleep) / < 7 mA (Deep Sleep, Online Deep Sleep) / < 8 mA (GPS Sleep) / < 28 mA nominal, no load |
| Internal fuse | 3 A, 125 V |
Physical
| Spec | Value |
|---|---|
| Dimensions | 52.6 × 29.1 × 26 mm (L×W×H) |
| Operating temperature | -40°C to +85°C (without battery) |
| Ingress protection | IP41 |
